Photoelectric Sensors
Telemecanique SensorsXU5M18MA230

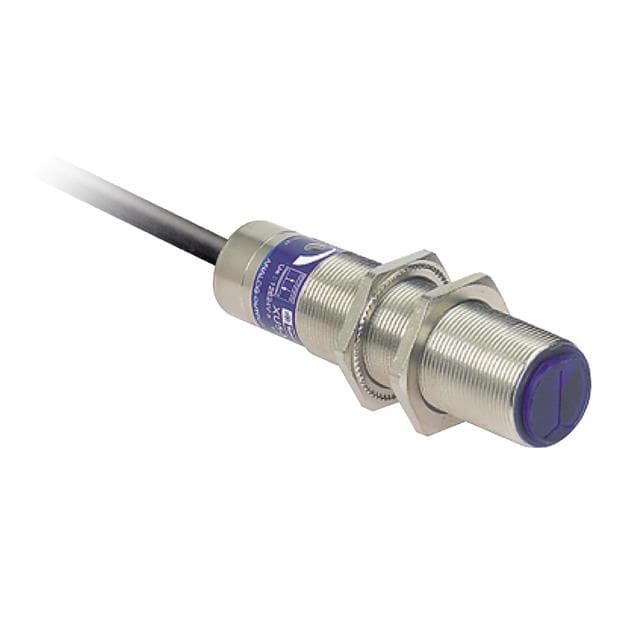

Telemecanique Sensors XU5M18MA230 is a photoelectric sensor. Specifications include a sensing range of up to 600.5 mm, 1 NO output, IP67 protection, 24-240V supply, Cylindrical M18, Nickel Plated Brass housing, and an operating temperature of -25°C to 55°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications8 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodDiffuse
Maximum Sensing Distance600.5 mm
Output Type1 NOVerified · High · Page 1
Supply Voltage24-240VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “24...240 V AC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeCylindrical M18Verified · High · Page 1
Operating Temperature-25°C to 55°C
Switching Frequency25 HzVerified · High · Page 1
Response Time20 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$188.716 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Photoelectric sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XUBTAPSWM12 | Telemecanique | — | — | — |
| XUB2BPXWM12R | Telemecanique | PHOTOELECTRIC SENSOR 18MM PNP XU | 17000.0 mm | $100.02 |
| XUK0AKSAM12 | Telemecanique | PHOTOELECTRIC SENSORS XU, XUK, M | 35000.2 mm | $170.51 |
| XUK8AKSNM12 | Telemecanique | PHOTOELECTRIC SENSORS XU, PHOTO | 999.7 mm | $213.14 |
| XUM5ALAYL2 | Telemecanique | PHOTOELECTRIC SENSORS XUM8, BGS | 150.0 mm | $564.69 |
