Photoelectric Sensors
Telemecanique SensorsXUM5ALAYL2

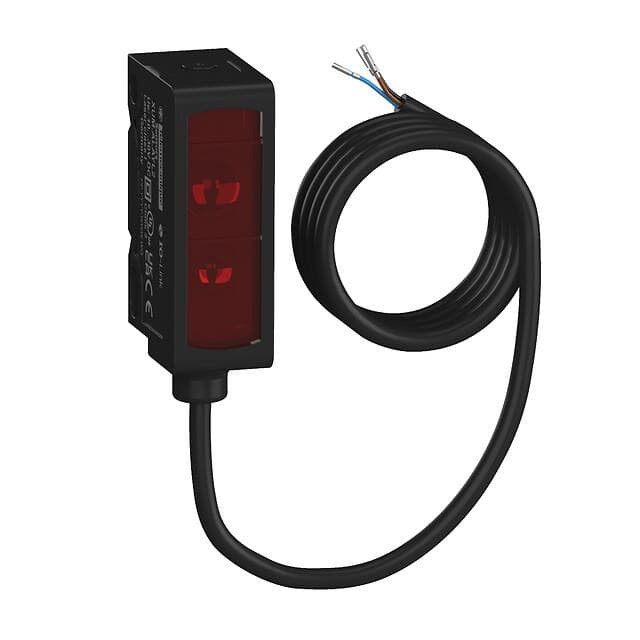

Telemecanique Sensors XUM5ALAYL2 is a photoelectric sensor. Specifications include a sensing range of up to 250 mm, PNP/NPN autodetect output, IP67 protection, 12-24V supply, Miniature, ABS housing, and an operating temperature of -20°C to 60°C.
Engineering Specifications
12 of 13 fields available · 92%Verified specifications9 of 12 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodDiffuse
Maximum Sensing Distance250.0 mm
Output TypePNP/NPN autodetectVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialABSVerified · High · Page 1
Housing TypeMiniatureVerified · High · Page 1
Operating Temperature-20°C to 60°C
Switching Frequency4.0 kHzVerified · High · Page 1
Response Time0.125 msVerified · High · Page 1
Current Consumption30 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$564.68Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Photoelectric sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XUM5ALAYM8 | Telemecanique | PHOTOELECTRIC SENSORS XUM8, BGS | 150.0 mm | $564.69 |
| XUM8ALAYL2 | Telemecanique | PHOTOELECTRIC SENSORS XUM8, BGS | 120.0 mm | $533.82 |
| XUN8APYNM12 | Telemecanique | — | — | — |
| XUVR1218PANM8 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 180.0 mm | $229.92 |
| XUVR1218PBNM8 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 180.0 mm | $517.35 |
