Photoelectric Sensors
Telemecanique SensorsXUB2BPXWM12R

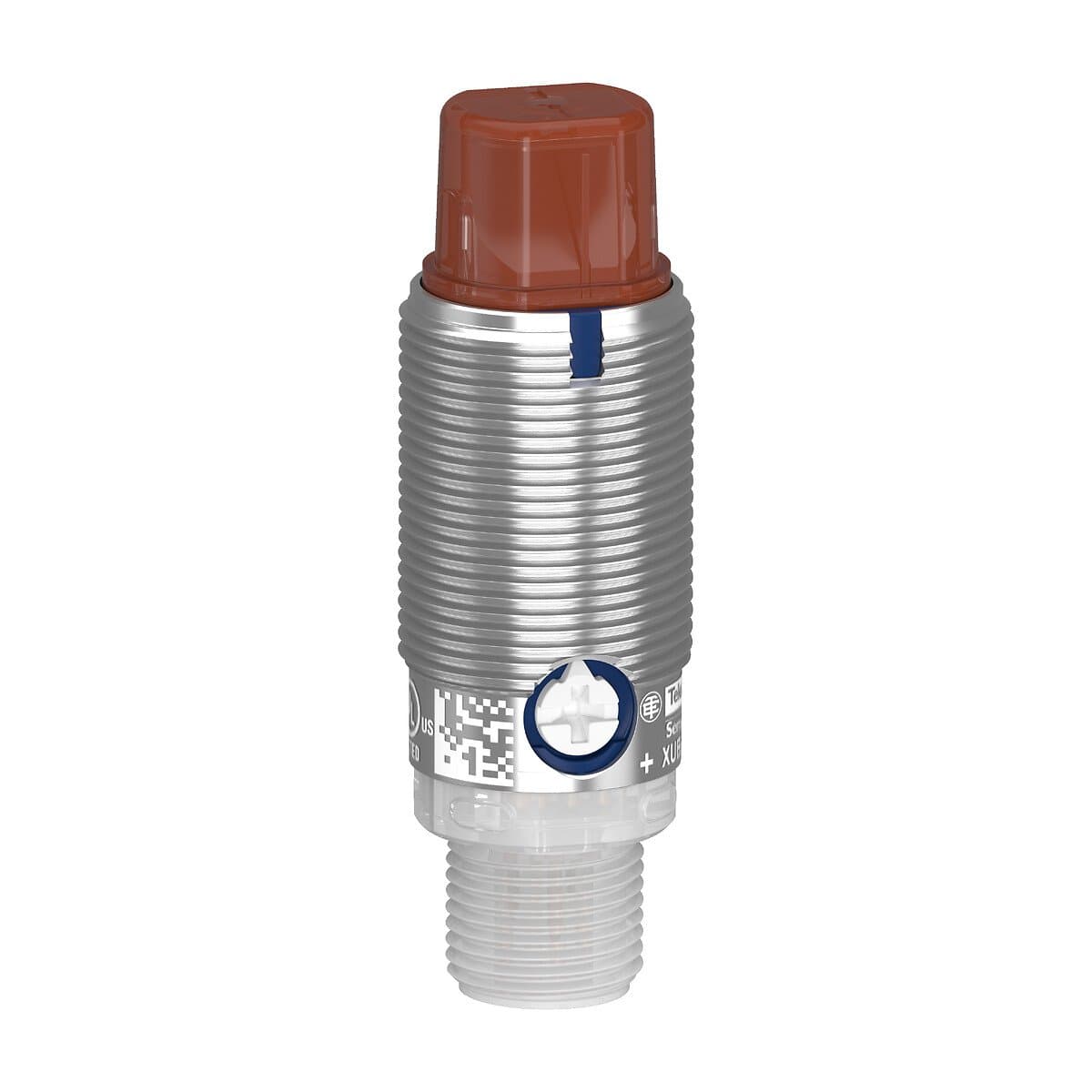

Telemecanique Sensors XUB2BPXWM12R is a photoelectric sensor. Specifications include a sensing range of up to 17000 mm, PNP output, IP65/IP67/IP69K protection, 12-24V supply, Cylindrical M18, PC/PBT housing, and an operating temperature of -30°C to 55°C.
Engineering Specifications
12 of 13 fields available · 92%Verified specifications9 of 12 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodThrough-Beam
Maximum Sensing Distance17000.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP65, IP67, IP69K
Housing MaterialPC/PBTVerified · High · Page 1
Housing TypeCylindrical M18Verified · High · Page 1
Operating Temperature-30°C to 55°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-30…55 °C”
Extracted Sep 1, 2026View source
Switching Frequency1.0 kHzVerified · High · Page 1
Response Time0.5 msVerified · High · Page 1
Current Consumption20 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$120.032 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
