Proximity Sensors - Industrial

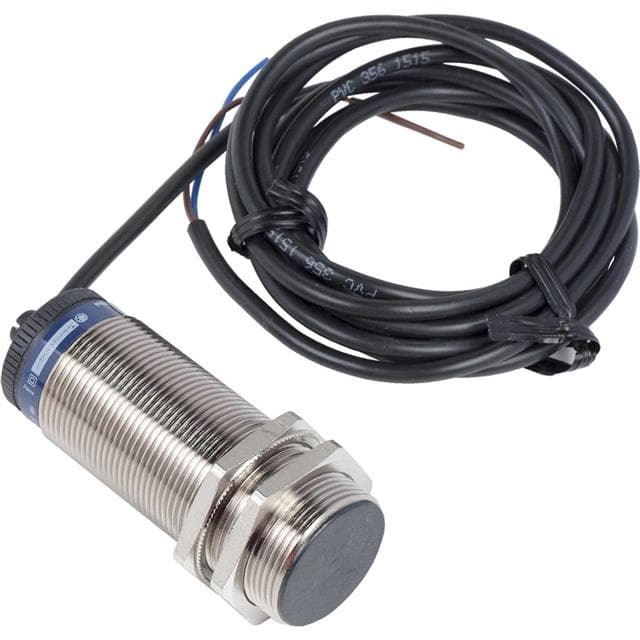

Telemecanique SensorsXSAV11801TF
Telemecanique Sensors XSAV11801TF is an inductive sensor. Specifications include a sensing range of 7.9–15 mm, 1 NC output, IP67 protection, 20-264V supply, M30, Nickel-Plated Brass housing, and an operating temperature of -40°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications7 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range7.9 – 15.0 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.31...0.59 in”
Extracted Aug 31, 2026View source
Output Type1 NCVerified · High · Page 1
Supply Voltage20-264VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “20…264 V AC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialNickel-Plated Brass
Housing TypeM30
Operating Temperature-40°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-40…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency100 HzVerified · High · Page 1
Response TimeNot specified
Current ConsumptionNot specified
AccuracyNot specified
