Proximity Sensors - Industrial
Telemecanique SensorsXS8E1A1NBL2

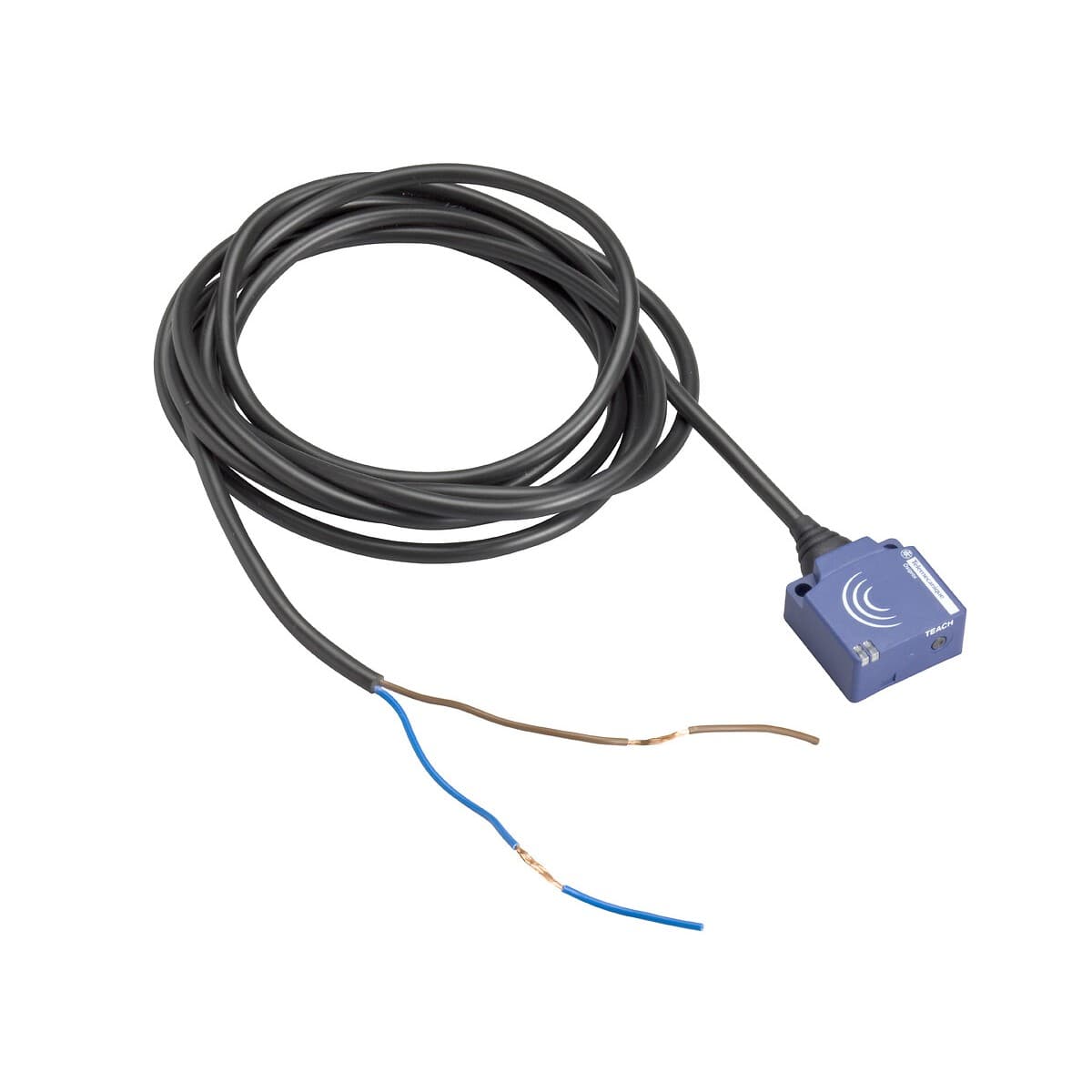

Telemecanique Sensors XS8E1A1NBL2 is an inductive sensor. Specifications include a sensing range of 10 mm, NPN output, IP68 protection, 10-36V supply, Flat form 26 x 26 x 13, Polybutylene Terephthalate (PBT) housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance10.0 mm
Output TypeNPNVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 7, 2026View source
IP RatingIP68Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP68”
Extracted Sep 7, 2026View source
Housing MaterialPolybutylene Terephthalate (PBT)
Housing TypeFlat form 26 x 26 x 13Verified · High · Page 1
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency2.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$212.464 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
