Proximity Sensors - Industrial
Telemecanique SensorsXS7C4A1MPN12

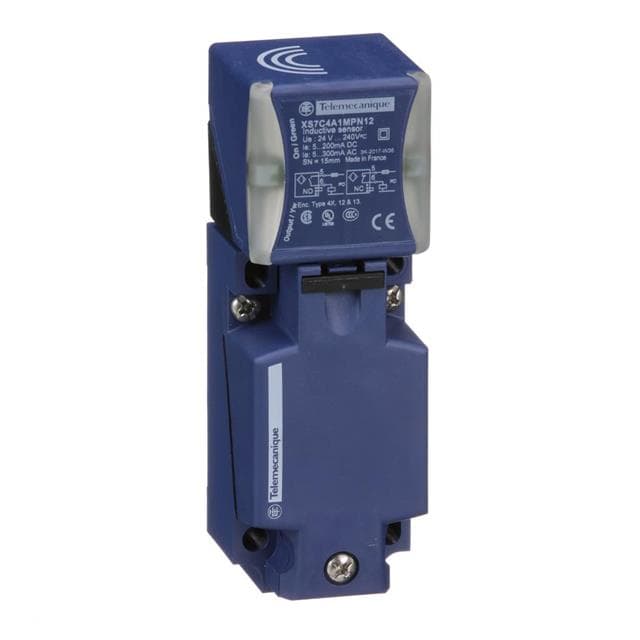

Telemecanique Sensors XS7C4A1MPN12 is an inductive sensor. Specifications include a sensing range of 15 mm, 1 NO or 1 NC programmable output, IP67/IP65/IP69K protection, 20-264V supply, Form 40 x 40 x 117, Polybutylene Terephthalate (PBT) housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications9 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance15.0 mm
Output Type1 NO or 1 NC programmableVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “1 NO or 1 NC programmable”
Extracted Sep 7, 2026View source
Supply Voltage20-264VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “20…264 V AC”
Extracted Sep 7, 2026View source
IP RatingIP67, IP65, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP65, IP69K”
Extracted Sep 7, 2026View source
Housing MaterialPolybutylene Terephthalate (PBT)Verified · High · Page 1
Housing TypeForm 40 x 40 x 117Verified · High · Page 1
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency25 HzVerified · High · Page 1
Response Time1.2 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$213.5215 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
