Proximity Sensors - Industrial
Telemecanique SensorsXS612B1MAU20

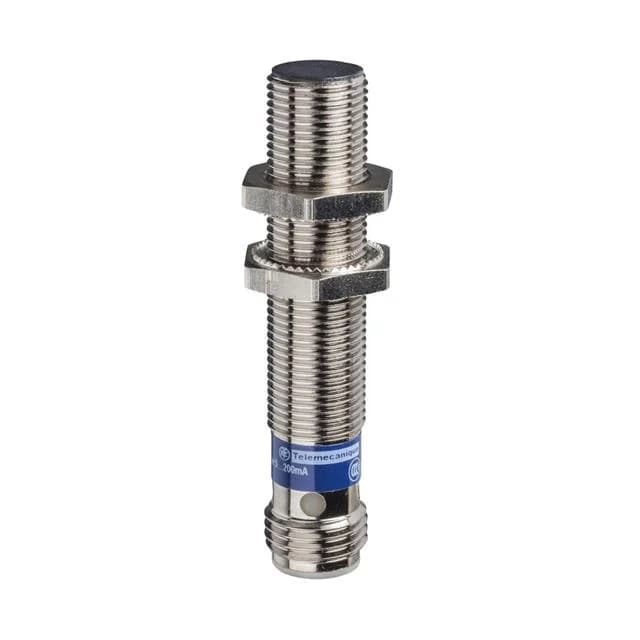

Telemecanique Sensors XS612B1MAU20 is an inductive sensor. Specifications include a sensing range of 2.5–4.1 mm, 1 NO output, IP67/IP69K protection, 20-264V supply, M12, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications9 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range2.5 – 4.1 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.1...0.16 in”
Extracted Aug 31, 2026View source
Output Type1 NOVerified · High · Page 1
Supply Voltage20-264VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “20…264 V AC”
Extracted Sep 6, 2026View source
IP RatingIP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM12
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency1.0 kHzVerified · High · Page 1
Response Time0.5 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$133.0028 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS212BLPAL2 | Telemecanique | INDUCTIVE SENSOR XS2 M12, L44MM, | 4.0 mm | $50.71 |
| XS4P12MA230 | Telemecanique | INDUCTIVE SENSOR XS4 M12, L52MM, | 4.0 mm | $151.60 |
| XS612B1PAL2 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 2.5 mm | $93.94 |
| XS618B1MBL2 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 4.1 mm | $120.66 |
| XS618B1PAL5 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 4.1 mm | $116.92 |
