Proximity Sensors - Industrial

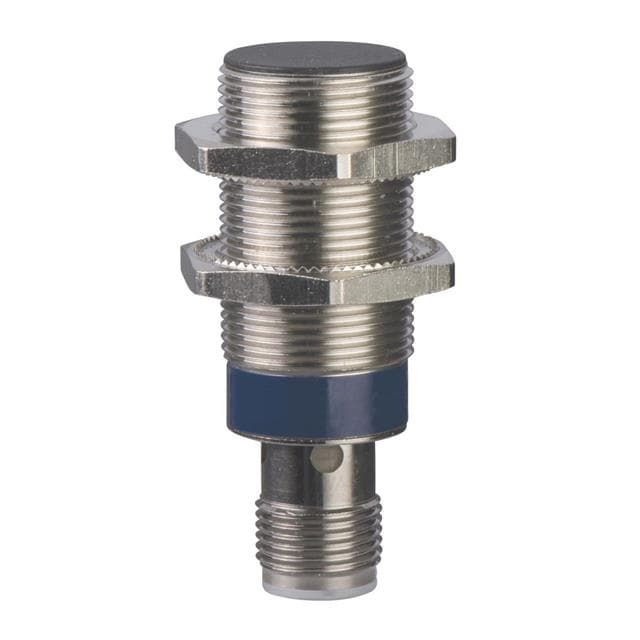

Telemecanique SensorsXS518B1PAM12
Telemecanique Sensors XS518B1PAM12 is an inductive sensor. Specifications include a sensing range of 5 mm, PNP output, IP67/IP69K protection, 10-36V supply, M18, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications9 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance5.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency2.0 kHzVerified · High · Page 1
Response Time0.15 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$106.8216 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS1N18PC410D | Telemecanique | INDUCTIVE SENSOR XS1 M18, L48MM, | 5.0 mm | $125.65 |
| XS618B1PAL5 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 4.1 mm | $116.92 |
| XS618B1PBM12 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 4.1 mm | $127.00 |
| XS1M18AB120 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 5.0 mm | $265.07 |
| XS1M18DA9AV | Telemecanique | INDUCTIVE SENSOR XS1 M18, 48VDC, | 5.0 mm | $143.05 |
