Proximity Sensors - Industrial
Telemecanique SensorsVM1VA3000Q

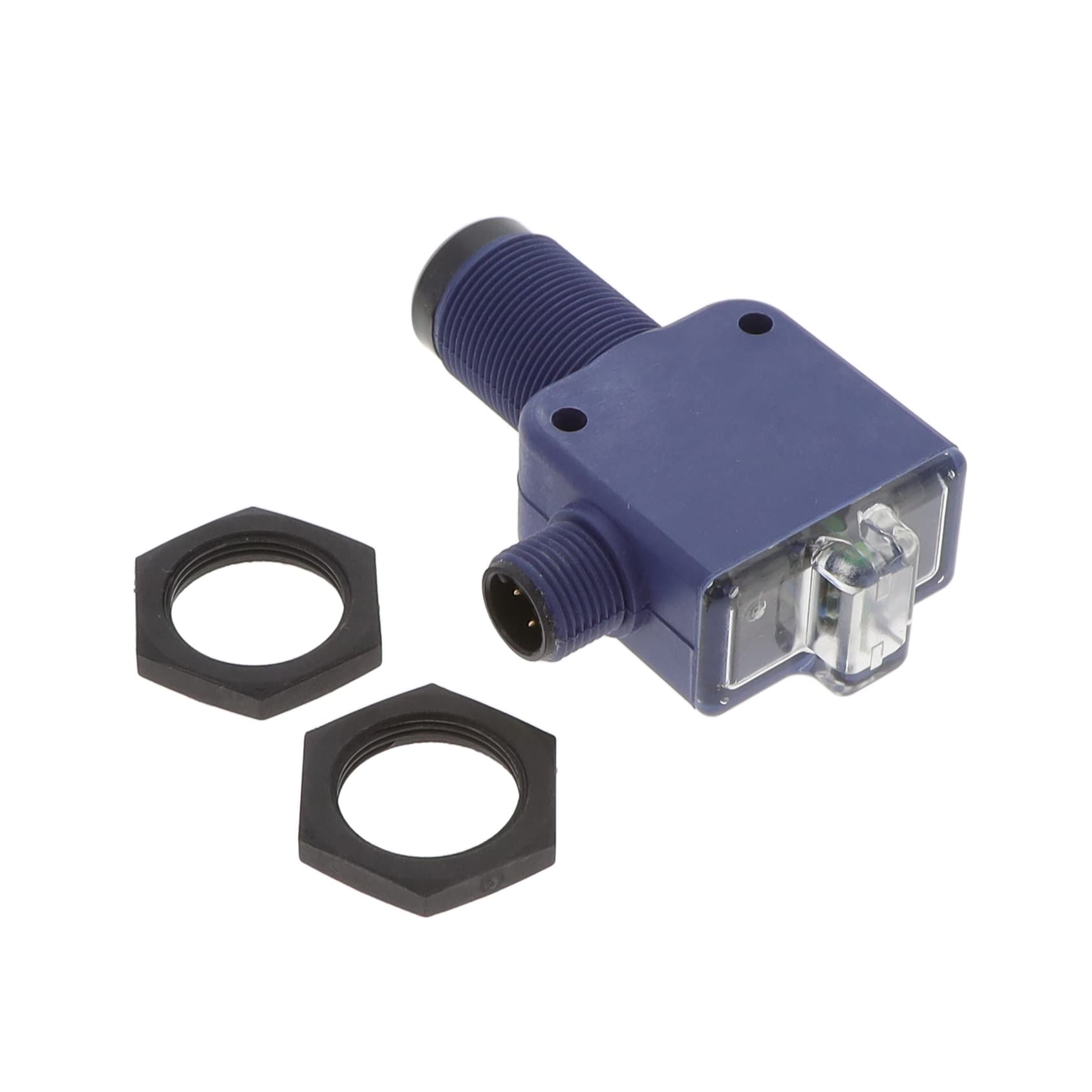

Telemecanique Sensors VM1VA3000Q is an ultrasonic sensor. Specifications include a sensing range of 50.8–508 mm, IP67 protection, 13-28V supply, Flat form + cylindrical M18, Valox housing, and an operating temperature of -30°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications9 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range50.8 – 508.0 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: explicit nominal label with unit
Excerpt: “20.00 in”
Extracted Sep 7, 2026View source
Output TypeNot specified
Supply Voltage13-28VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “13…28 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialValoxVerified · High · Page 1
Housing TypeFlat form + cylindrical M18Verified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Flat form + cylindrical M18”
Extracted Sep 7, 2026View source
Operating Temperature-30°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-22…158 °F”
Extracted Sep 7, 2026View source
Switching FrequencyNot specified
Response TimeNot specified
Current Consumption40 mAVerified · High · Page 1
Accuracy1.27%Verified · High · Page 1
