Telemecanique SensorsSM300A22800

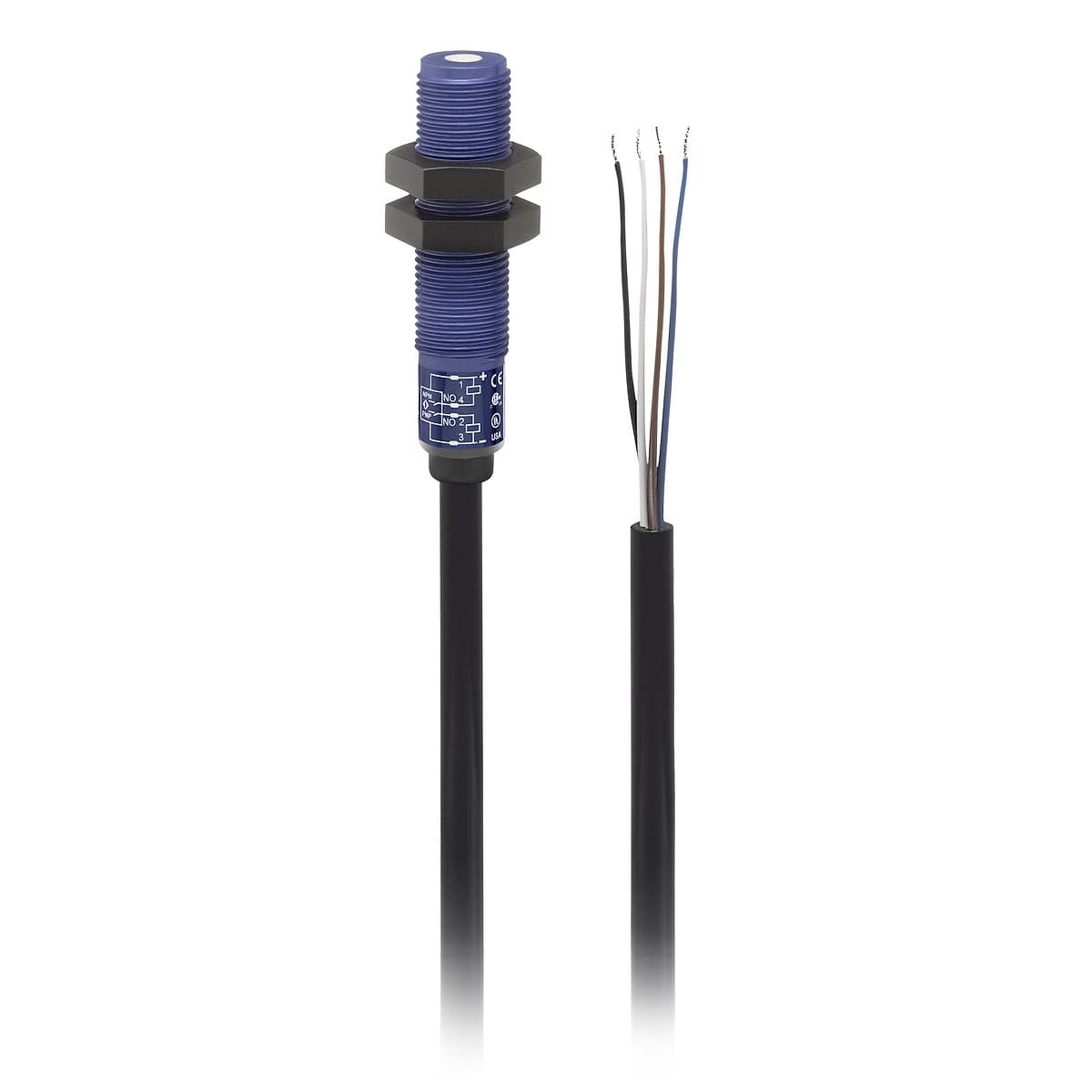

Telemecanique Sensors SM300A22800 is an ultrasonic sensor. Specifications include a sensing range of 6.4–50.8 mm, PNP/NPN output, IP67 protection, 10-28V supply, Cylindrical M12, ULTEM housing, and an operating temperature of -30°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications10 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range6.3 – 50.8 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: explicit nominal label with unit
Excerpt: “2.00 in”
Extracted Sep 7, 2026View source
Output TypePNP/NPNVerified · High · Page 1
Supply Voltage10-28VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…28 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialULTEMVerified · High · Page 1
Housing TypeCylindrical M12Verified · High · Page 1
Operating Temperature-30°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-22…158 °F”
Extracted Sep 7, 2026View source
Switching FrequencyNot specified
Response TimeNot specified
Current Consumption25 mAVerified · High · Page 1
Accuracy0.7%Verified · High · Page 1
