Sensors, Transducers
Telemecanique SensorsXS618B1PAM12TF

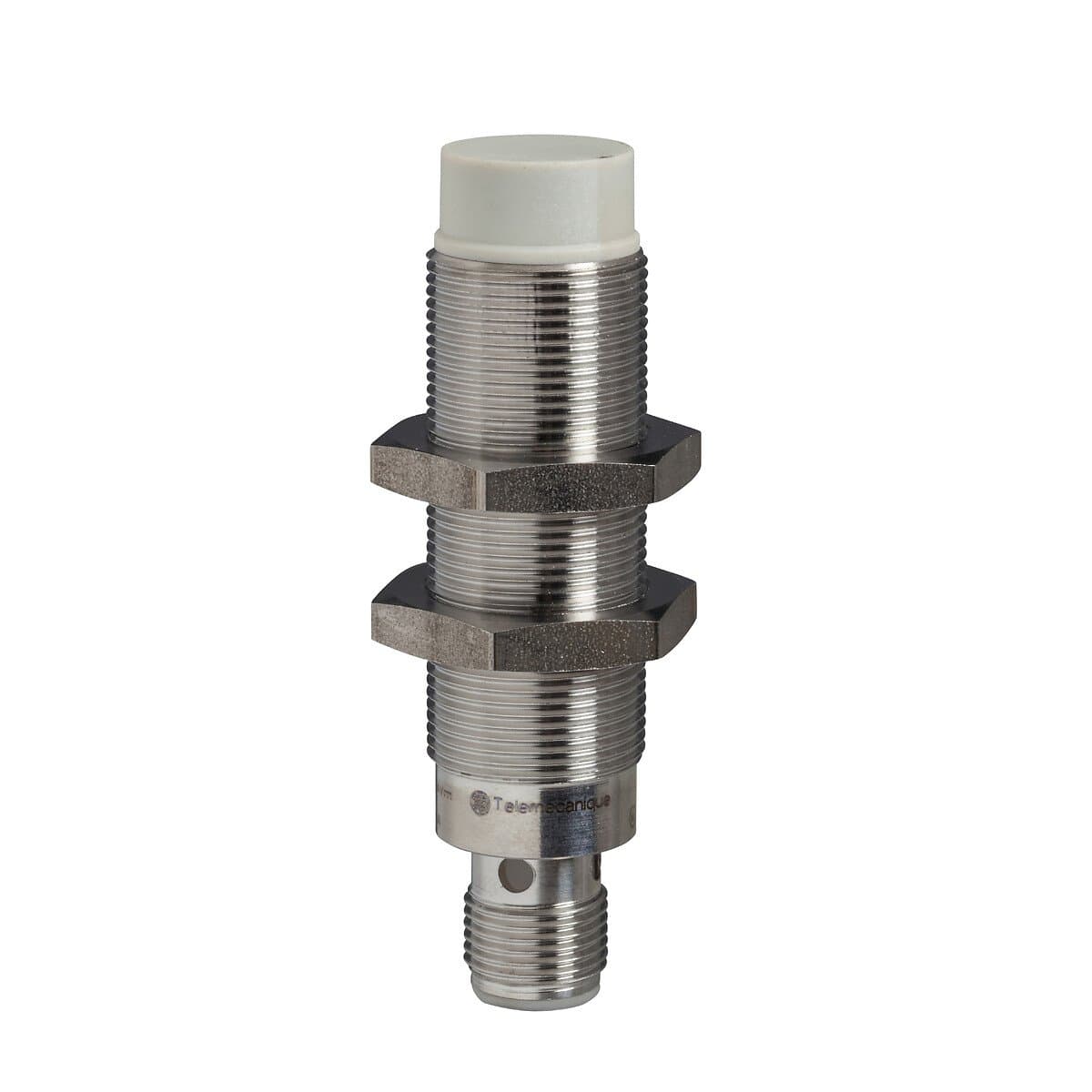

Telemecanique Sensors XS618B1PAM12TF is an inductive sensor. Specifications include a sensing range of 8 mm, PNP output, IP67/IP69K protection, 10-58V supply, M18, Nickel Plated Brass housing, and an operating temperature of -40°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications8 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance8.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-58VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…58 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-40°C to 70°C
Switching Frequency1.0 kHzVerified · High · Page 1
Response Time0.3 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$117.15Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
