Omron Automation and SafetyE2E-S04SR8-WC-C1 2M

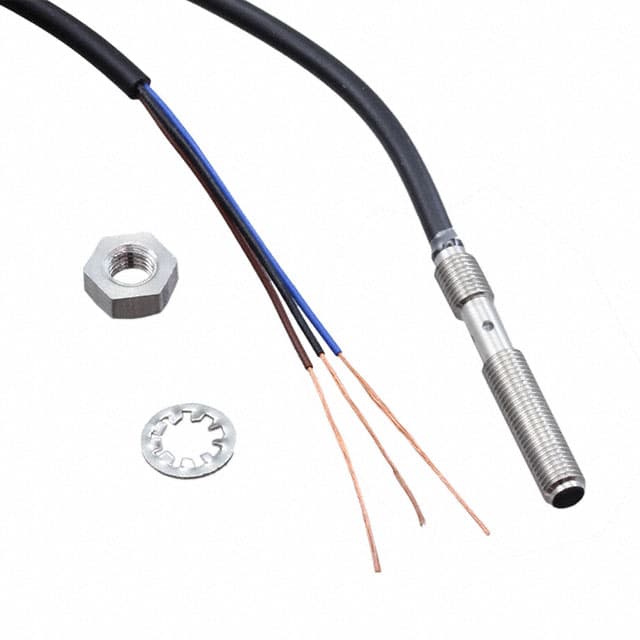

Omron Automation and Safety E2E-S04SR8-WC-C1 2M is an inductive sensor. Specifications include a sensing range of 0.8 mm, NPN-NO, 3-Wire output, IP67 protection, 10-30V supply, M4, Stainless Steel housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications4 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductive
Sensing MethodNot specified
Sensing Distance0.8 mm
Output TypeNPN-NO, 3-Wire
Supply Voltage10-30VVerified · High · Page 3
Manufacturer datasheetHighPage 3
Evidence: labeled voltage with V unit
Excerpt: “10 to 30 VDC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 6
Manufacturer datasheetHighPage 6
Evidence: labeled compliance context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialStainless Steel
Housing TypeM4
Operating Temperature-25°C to 70°CVerified · High · Page 3
Manufacturer datasheetHighPage 3
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−25 to 70°C”
Extracted Sep 6, 2026View source
Switching Frequency5.0 kHz
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 3
AccuracyNot specified
Where to Buy
Best Price
Mouser
$105.0010 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E2B-M12KN08-M1-B1 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 8MM CYLIND | 8.0 mm | $34.55 |
| E2B-M12KN08-M1-C1 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 8MM CYLIND | 8.0 mm | $32.59 |
| E2B-M12KS04-M1-B1 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 4MM CYLIND | 4.0 mm | $32.59 |
| E2B-S08KS02-MC-C2 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 2MM CYLIND | 2.0 mm | $39.81 |
| E2E-S05S12-CJ-B1 0.3M | Omron Automation and Safety | SENSOR PROX INDUCT 1.2MM CYLIND | 0.8 mm | $148.74 |
