Banner EngineeringQ5XKLAF2000-Q8

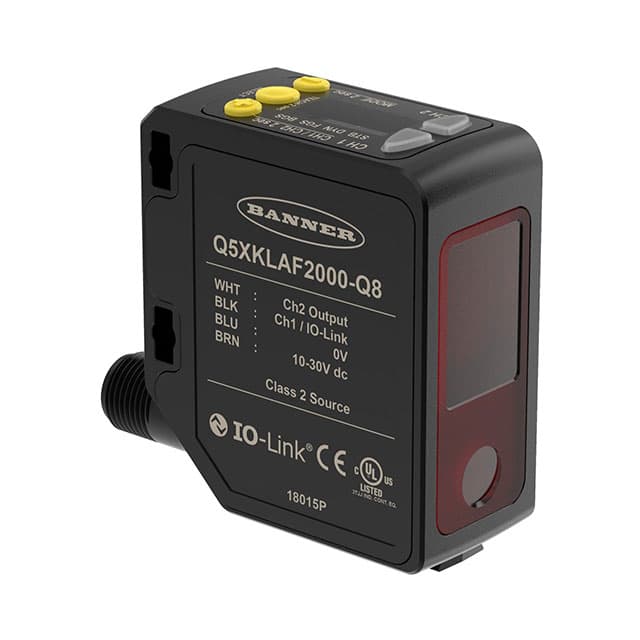

Banner Engineering Q5XKLAF2000-Q8 is a laser sensor. Specifications include a sensing range of 95–2000 mm, IO-Link output, IP67 protection, 10-30V supply, And Construction housing, and an operating temperature of -10°C to 50°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications7 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeLaserVerified · High · Page 4
Sensing MethodReflective
Sensing Range95.0 – 2000.0 mmVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: range min from labeled distance with explicit unit
Excerpt: “95 mm to 2000 mm”
Extracted Sep 6, 2026View source
Output TypeIO-LinkVerified · High · Page 4
Supply Voltage10-30VVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: labeled voltage with V unit
Excerpt: “10 V DC to 30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · Medium · Page 7
Manufacturer datasheetMediumPage 7
Evidence: consistent across candidate regions
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialAnd ConstructionVerified · High · Page 4
Housing TypeNot specified
Operating Temperature-10°C to 50°C
Switching FrequencyNot specified
Response Time50 msVerified · High · Page 4
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$456.005 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Laser sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| Q20-2KLAF2-Q | Banner Engineering | PHOTOELECTRIC SENSOR, IR LASER | 20.0 mm | $264.11 |
| Q4XTBLAF300-Q8 | Banner Engineering Corporation | SENSOR OPTICAL 3-30CM | 30.0 mm | $467.00 |
| O1D100 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 200000.0 mm | $540.00 |
| O5D100 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 30000.0 mm | $198.50 |
| O5D102 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 30000.0 mm | $230.06 |
