Banner EngineeringQ4XTBLAF300-Q8

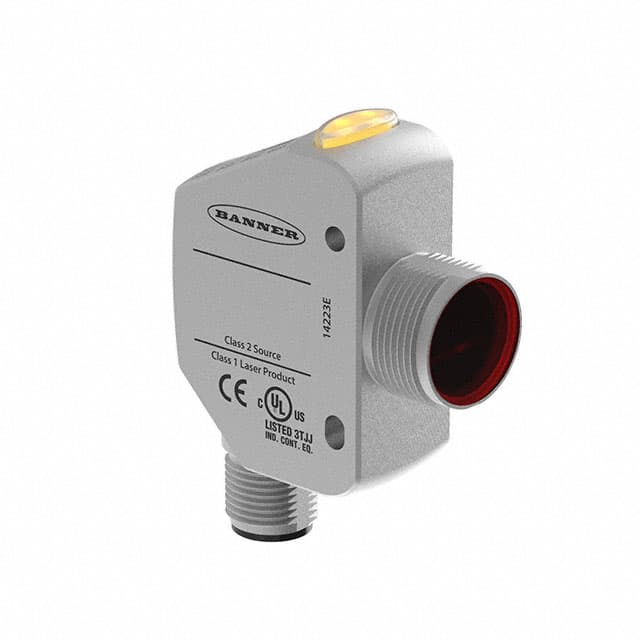

Banner Engineering Q4XTBLAF300-Q8 is a laser sensor. Specifications include a sensing range of 30 mm (range 25–300 mm), Threaded Barrel Models: Bipolar (1 PNP and 1 NPN) output output, IP67/IP68/IP69K protection, 10-30V supply, 316 L stainless steel housing, and an operating temperature of -10°C to 50°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications6 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeLaserVerified · High · Page 5
Sensing MethodBackground Suppression
Sensing Distance30.0 mm (range 25.0–300.0 mm)
Output TypeThreaded Barrel Models: Bipolar (1 PNP and 1 NPN) outputVerified · High · Page 5
Manufacturer datasheetHighPage 5
Excerpt: “Threaded Barrel Models: Bipolar (1 PNP and 1 NPN) output”
Extracted Sep 5, 2026View source
Supply Voltage10-30VVerified · High · Page 5
Manufacturer datasheetHighPage 5
Evidence: labeled voltage with V unit
Excerpt: “10 V DC to 30 V DC”
Extracted Sep 5, 2026View source
IP RatingIP67, IP68, IP69KVerified · High · Page 7
Manufacturer datasheetHighPage 7
Evidence: labeled compliance context
Excerpt: “IP67, IP68, IP69K”
Extracted Sep 5, 2026View source
Housing Material316 L stainless steelVerified · High · Page 5
Housing TypeNot specified
Operating Temperature-10°C to 50°C
Switching FrequencyNot specified
Response Time1.5 msVerified · High · Page 5
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$467.0078 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Laser sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| Q20-2KLAF2-Q | Banner Engineering | PHOTOELECTRIC SENSOR, IR LASER | 20.0 mm | $264.11 |
| Q5XKLAF2000-Q8 | Banner Engineering Corporation | SEN LASER 95-2000MM NPN/PNP-IO L | 95.0 mm | $449.00 |
| O1D100 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 200000.0 mm | $540.00 |
| O5D100 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 30000.0 mm | $198.50 |
| O5D102 | ifm efector, inc. | PHOTOELECTRIC DISTANCE SENSOR; N | 30000.0 mm | $230.06 |
