Proximity Sensors - Industrial
Telemecanique SensorsXXA18S1VM12

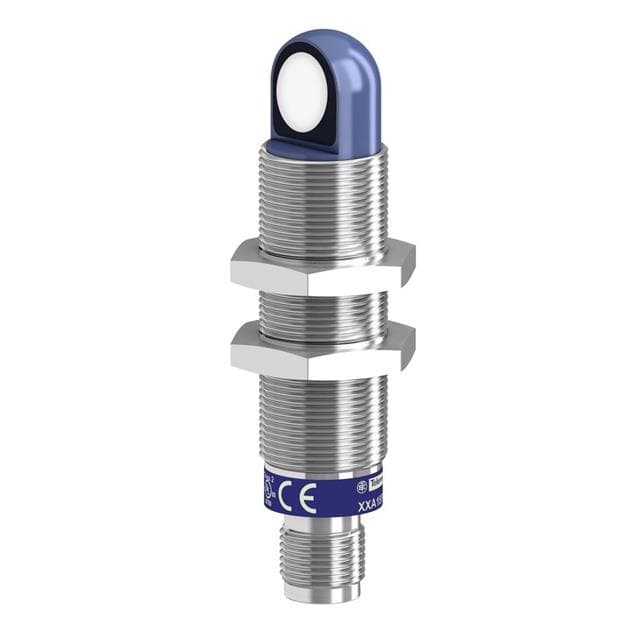

Telemecanique Sensors XXA18S1VM12 is an ultrasonic sensor. Specifications include a sensing range of 103.6–999.7 mm, Analog Voltage output, IP65/IP67 protection, 14-30V supply, M18, Stainless steel 316L housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range103.6 – 999.7 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.34…3.28 ft”
Extracted Sep 1, 2026View source
Output TypeAnalog Voltage
Supply Voltage14-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “14…30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67”
Extracted Sep 6, 2026View source
Housing MaterialStainless steel 316LVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Sep 1, 2026View source
Switching FrequencyNot specified
Response TimeNot specified
Current Consumption30 mAVerified · High · Page 1
Accuracy0.1%Verified · High · Page 1
