Photoelectric Sensors
Telemecanique SensorsXUYFNEP60005

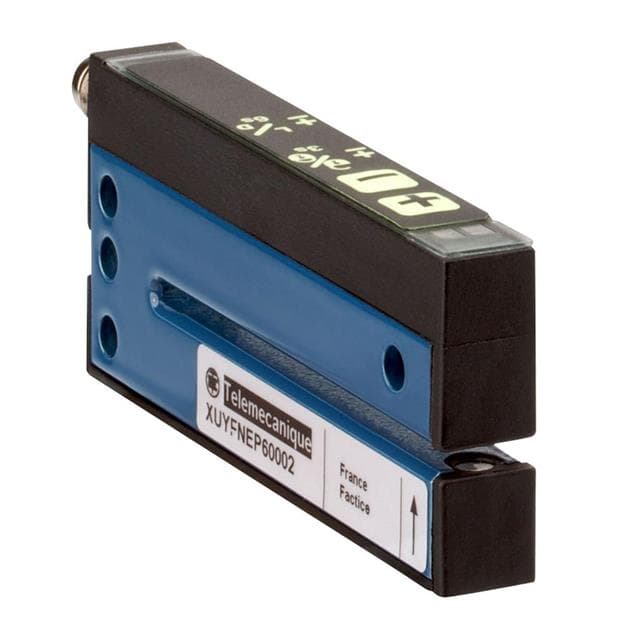

Telemecanique Sensors XUYFNEP60005 is a photoelectric sensor. Specifications include a sensing range of 5 mm, PNP and NPN output, IP65 protection, 12-24V supply, Fork, Painted aluminium and polyamide/glass housing, and an operating temperature of -20°C to 60°C.
Engineering Specifications
12 of 13 fields available · 92%Verified specifications9 of 12 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing Method-
Sensing Distance5.0 mm
Output TypePNP and NPNVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP65Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65”
Extracted Sep 7, 2026View source
Housing MaterialPainted aluminium and polyamide/glassVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Painted aluminium and polyamide/glass”
Extracted Sep 7, 2026View source
Housing TypeForkVerified · High · Page 1
Operating Temperature-20°C to 60°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-4…140 °F”
Extracted Sep 2, 2026View source
Switching Frequency10.0 kHzVerified · High · Page 1
Response Time0.02 ms
Current Consumption40 mAVerified · High · Page 1
AccuracyNot specified
