Photoelectric Sensors
Telemecanique SensorsXUYFALNEP40080

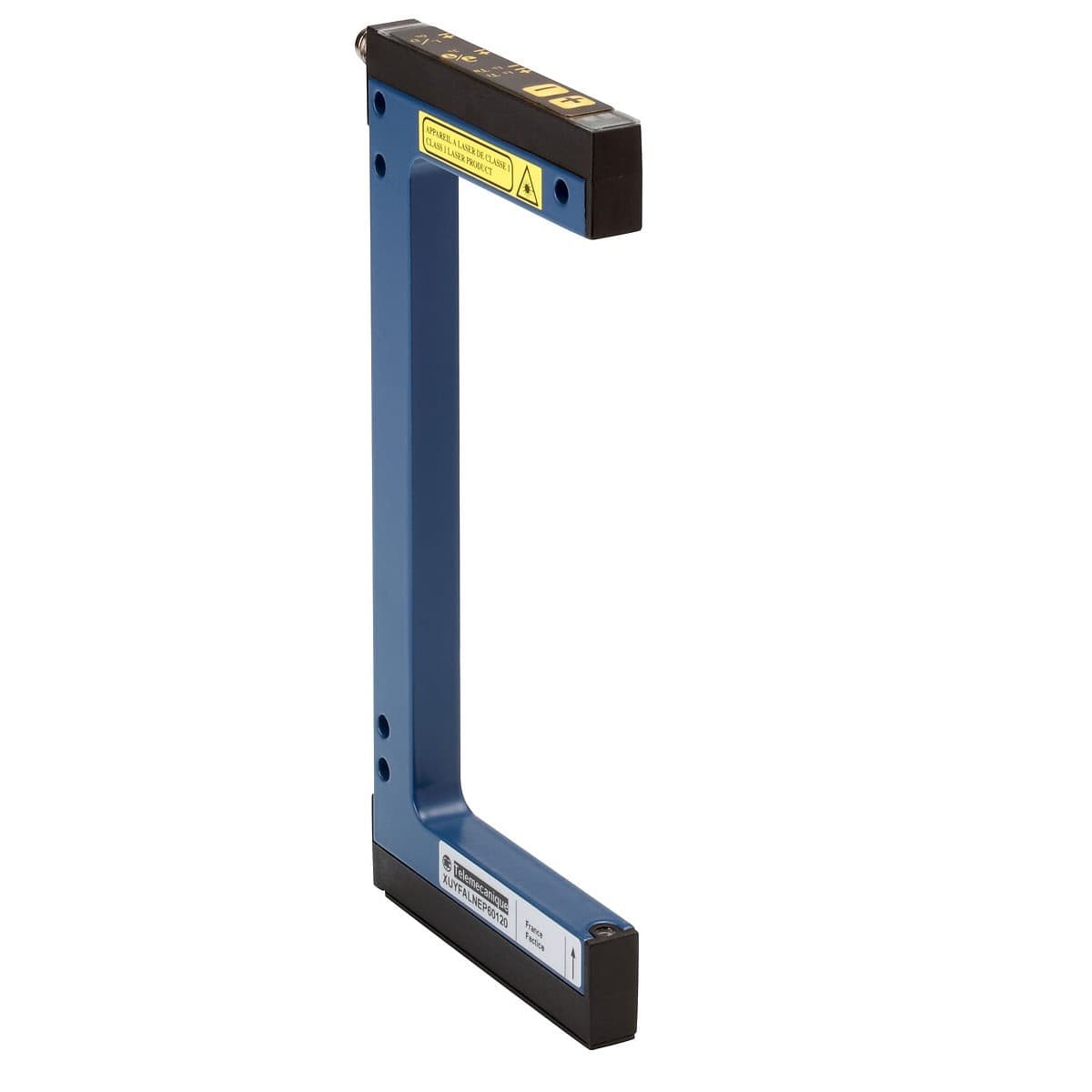

Telemecanique Sensors XUYFALNEP40080 is a photoelectric sensor. Specifications include a sensing range of 80 mm, PNP and NPN output, IP65 protection, 12-24V supply, Fork, Painted aluminium and polyamide/glass housing, and an operating temperature of -20°C to 60°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications8 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodThrough-Beam
Sensing Distance80.0 mm
Output TypePNP and NPNVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP65
Housing MaterialPainted aluminium and polyamide/glassVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Painted aluminium and polyamide/glass”
Extracted Sep 7, 2026View source
Housing TypeForkVerified · High · Page 1
Operating Temperature-20°C to 60°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-4…140 °F”
Extracted Sep 7, 2026View source
Switching Frequency10.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption40 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$357.36Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Photoelectric sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XUYFALNEP100080 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 80.0 mm | $609.59 |
| XUYFALNEP60080 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 80.0 mm | $386.34 |
| XUYFANEP100080 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 80.0 mm | $282.07 |
| XUYFANEP60080 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 80.0 mm | $253.99 |
| XUYFLNEP100080 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 80.0 mm | $567.47 |
