Photoelectric Sensors

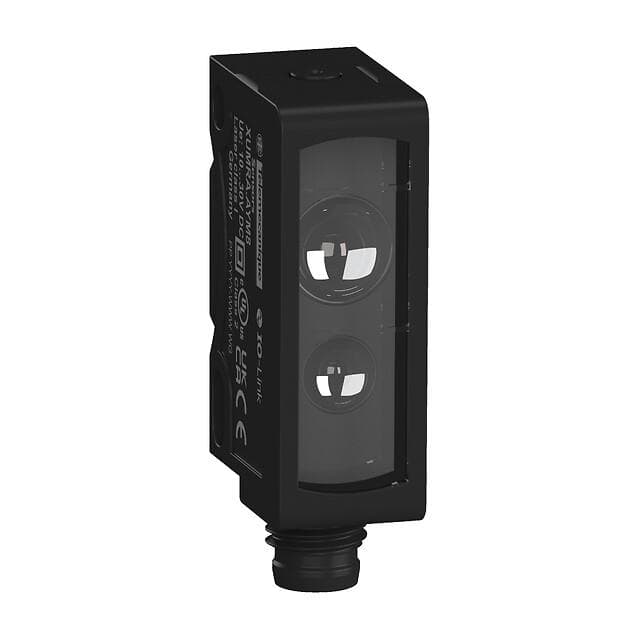

Telemecanique SensorsXUMRACAYM8
Telemecanique Sensors XUMRACAYM8 is a photoelectric sensor. Specifications include a sensing range of up to 15 mm, PNP/NPN autodetect output, IP67/IP69K protection, 12-24V supply, Miniature, ABS housing, and an operating temperature of -20°C to 55°C.
Engineering Specifications
12 of 13 fields available · 92%Verified specifications9 of 12 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodDiffuse
Maximum Sensing Distance15.0 mm
Output TypePNP/NPN autodetectVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 7, 2026View source
Housing MaterialABSVerified · High · Page 1
Housing TypeMiniatureVerified · High · Page 1
Operating Temperature-20°C to 55°C
Switching Frequency2.5 kHzVerified · High · Page 1
Response Time0.5 msVerified · High · Page 1
Current Consumption30 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
DigiKey
$502.871 in stock · checked Sep 7, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Photoelectric sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XUN8APYNM12 | Telemecanique | — | — | — |
| XUYFALNEP100015 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 15.0 mm | $773.02 |
| XUYFALNEP40015 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 15.0 mm | $465.20 |
| XUYFALNEP60015 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 15.0 mm | $697.80 |
| XUYFANEP40015 | Telemecanique | PHOTOELECTRIC FORK SENSOR | 15.0 mm | $204.54 |
