Proximity Sensors - Industrial

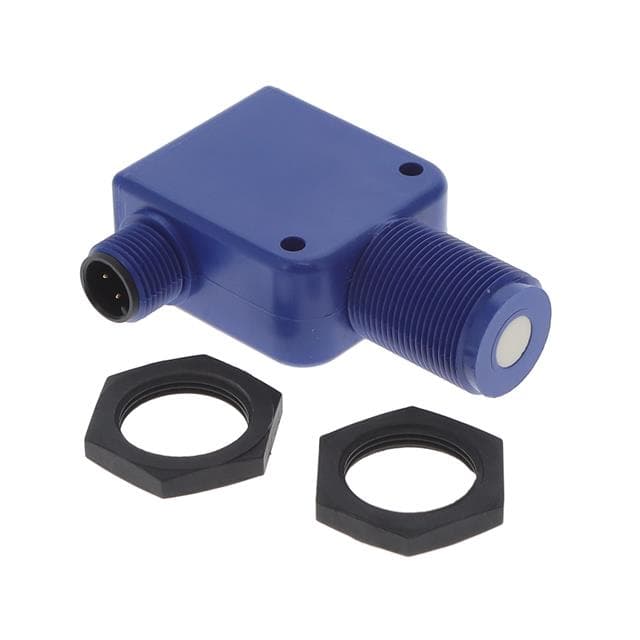

Telemecanique SensorsVM1PNOQ
Telemecanique Sensors VM1PNOQ is an ultrasonic sensor. Specifications include a sensing range of 50.8–508 mm, PNP output, IP67 protection, 10-28V supply, Flat form + cylindrical M18, Valox housing, and an operating temperature of -30°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications10 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range50.8 – 508.0 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: explicit nominal label with unit
Excerpt: “20.00 in”
Extracted Sep 7, 2026View source
Output TypePNPVerified · High · Page 1
Supply Voltage10-28VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…28 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialValoxVerified · High · Page 1
Housing TypeFlat form + cylindrical M18Verified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Flat form + cylindrical M18”
Extracted Sep 7, 2026View source
Operating Temperature-30°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-22…158 °F”
Extracted Sep 7, 2026View source
Switching FrequencyNot specified
Response TimeNot specified
Current Consumption40 mAVerified · High · Page 1
Accuracy1.27%Verified · High · Page 1
Where to Buy
Best Price
DigiKey
$153.041 in stock · checked Sep 2, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| VM18PNCQ | Telemecanique | ULT SEN 300KHZ 12V/24V | 508.0 mm | $145.75 |
| XXA30B1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $353.97 |
| XXA30P1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $308.75 |
| XXA30S1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $368.97 |
| XXS30S4PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 420.6 mm | $413.74 |
