SICK, Inc.6063576

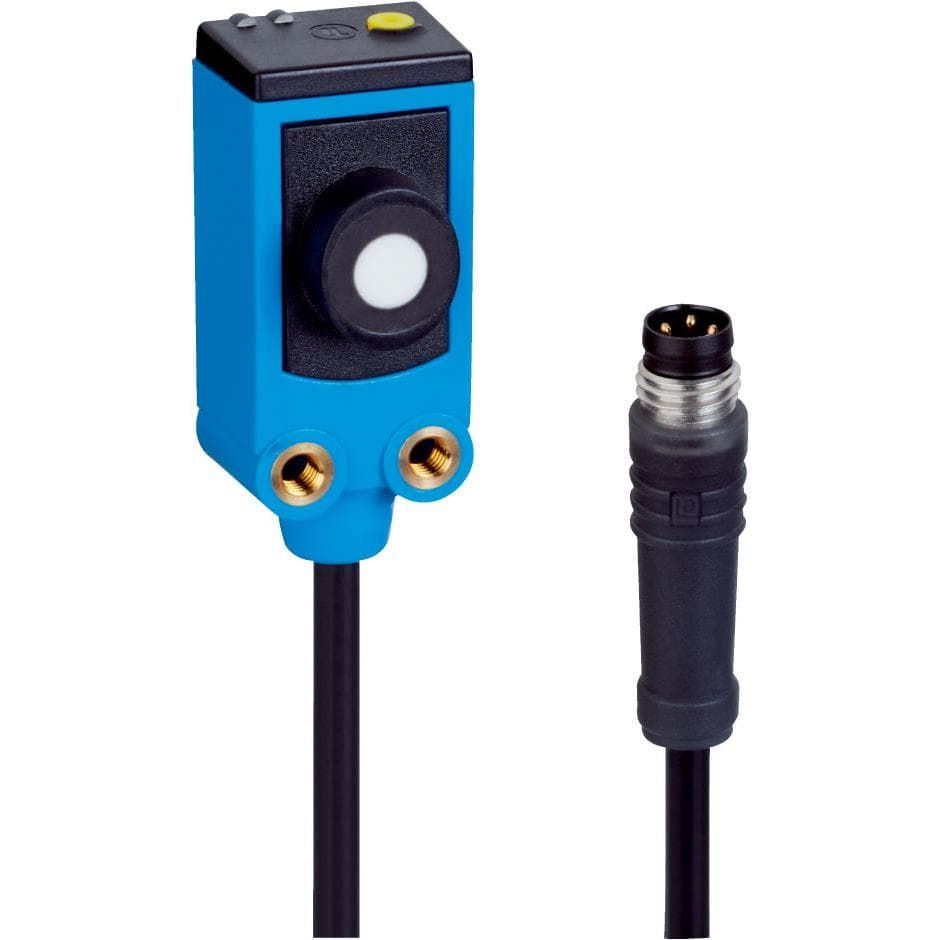

SICK, Inc. 6063576 is an ultrasonic sensor. Specifications include a sensing range of 13–250 mm, Analog Current, Push-Pull, NPN/PNP output, IP65/IP67 protection, 15V ~ 30V supply, M5, Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin) housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $584.84
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
11 of 13 fields available · 85%Verified specifications6 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 2
Sensing MethodNot specified
Sensing Range13.0 – 250.0 mm
Output TypeAnalog Current, Push-Pull, NPN/PNP
Supply Voltage15V ~ 30V
IP RatingIP65, IP67
Housing MaterialPlastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin)Verified · High · Page 2
Manufacturer datasheetHighPage 2
Excerpt: “Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin)”
Extracted Sep 6, 2026View source
Housing TypeM5
Operating Temperature-25°C to 70°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “–25 °C ... +70 °C”
Extracted Sep 6, 2026View source
Switching Frequency30 HzVerified · High · Page 2
Response Time24 msVerified · High · Page 2
Current ConsumptionNot specified
Accuracy1%Verified · High · Page 2
Where to Buy
All retailer offers (1)
- ViewDigiKey$584.842 in stock · checked Aug 28, 2026 · may be outdated
