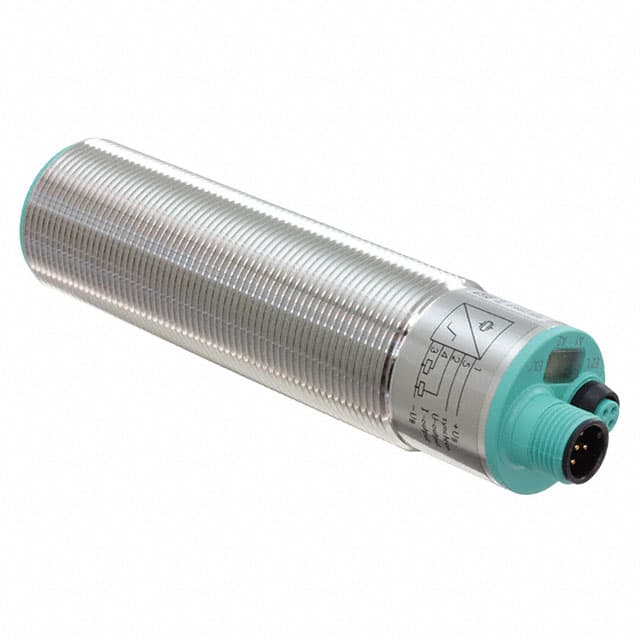

Pepperl+Fuchs, Inc.UC500-30GM-IUR2-V15
Pepperl+Fuchs, Inc. UC500-30GM-IUR2-V15 is an ultrasonic sensor. Specifications include a sensing range of 30–500 mm, 1 current output 4 ... 20 mA output, IP65 protection, 10-30V supply, M30, Stainless steel (1.4305/AISI 303) housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $617.84
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
9 of 13 fields available · 69%Verified specifications7 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range30.0 – 500.0 mm
Output Type1 current output 4 ... 20 mAVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “1 current output 4 ... 20 mA”
Extracted Sep 6, 2026View source
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10 ... 30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65”
Extracted Sep 6, 2026View source
Housing MaterialStainless steel (1.4305/AISI 303)Verified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Stainless steel (1.4305/AISI 303)”
Extracted Sep 6, 2026View source
Housing TypeM30
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25 ... 70 °C”
Extracted Sep 6, 2026View source
Switching FrequencyNot specified
Response Time21 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
All retailer offers (1)
- ViewDigiKey$617.843 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
