Pepperl+Fuchs, Inc.UC2000-L2-E6-V15

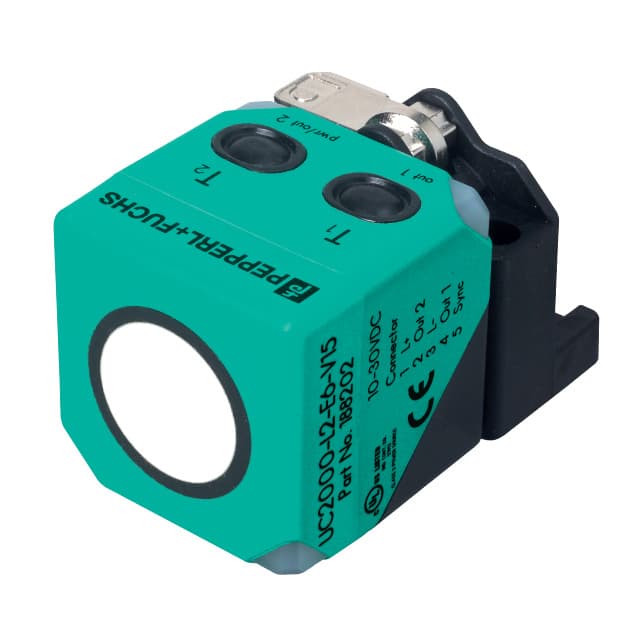

Pepperl+Fuchs, Inc. UC2000-L2-E6-V15 is an ultrasonic sensor. Specifications include a sensing range of 60–2000 mm, 2 switch outputs PNP, NO/NC, programmable output, IP67 protection, 10-30V supply, PA-GF35 housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $542.99
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
10 of 13 fields available · 77%Verified specifications10 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range60.0 – 2000.0 mmVerified · High
Manufacturer datasheetHighPage not recorded
Excerpt: “Sensing range 60 ... 2000 mm”
Extracted Sep 1, 2026View source
Output Type2 switch outputs PNP, NO/NC, programmableVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “2 switch outputs PNP, NO/NC, programmable”
Extracted Sep 6, 2026View source
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10 ... 30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialPA-GF35Verified · High · Page 1
Housing TypeNot specified
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25 ... 70 °C”
Extracted Sep 6, 2026View source
Switching Frequency5 HzVerified · High · Page 1
Response Time60 msVerified · High · Page 1
Current Consumption50 mAVerified · High · Page 1
AccuracyNot specified
