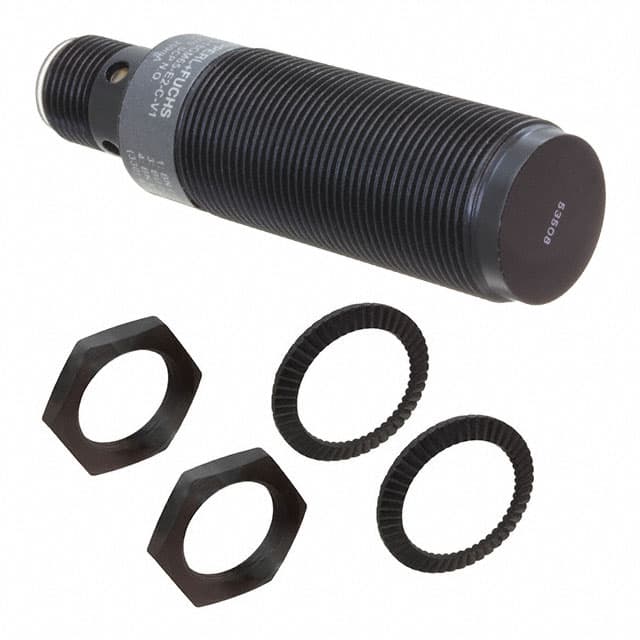

Pepperl+Fuchs, Inc.UB300-18GM40-E5-V1
Pepperl+Fuchs, Inc. UB300-18GM40-E5-V1 is an ultrasonic sensor. Specifications include a sensing range of 35–300 mm, 1 switching output E5, PNP NO/NC, programmable output, IP67 protection, 10-30V supply, Brass, nickel-plated housing, and an operating temperature of -25°C to 70°C.
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
11 of 13 fields available · 85%Sensor TypeUltrasonicVerified · High · Page 1
Sensing Range35.0 – 300.0 mmVerified · High · Page 1
Evidence: range min from labeled distance with explicit unit
Output Type1 switching output E5, PNP NO/NC, programmableVerified · High · Page 1
Supply Voltage10-30VVerified · High · Page 1
Evidence: labeled voltage with V unit
IP RatingIP67Verified · High · Page 1
Evidence: labeled ingress-protection context
Housing MaterialBrass, nickel-platedVerified · High · Page 1
Operating Temperature-25°C to 70°CVerified · High · Page 1
Evidence: labeled range with explicit °C/°F/K unit
Switching Frequency13 HzVerified · High · Page 1
Response Time50 msVerified · High · Page 1
Current Consumption20 mAVerified · High · Page 1
Accuracy1%Verified · High · Page 1
