Omron Automation and SafetyE4PA-LS50-M1-N

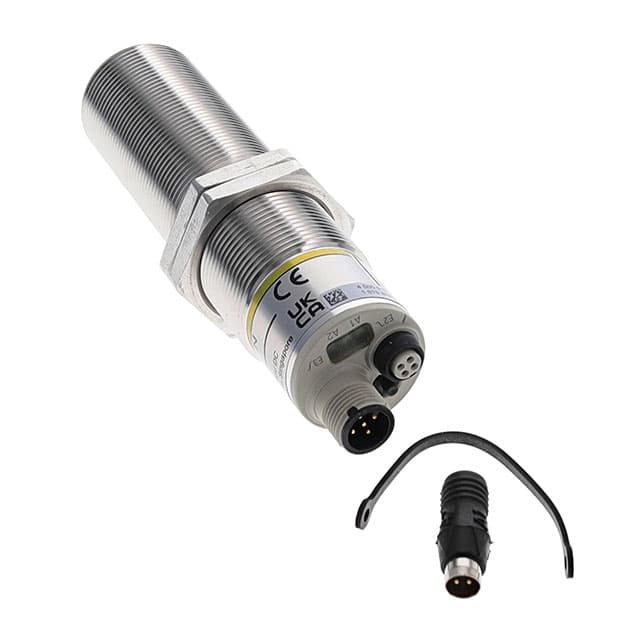

Omron Automation and Safety E4PA-LS50-M1-N is an ultrasonic sensor. Specifications include a sensing range of 50–500 mm, Analog Current and Voltage output, IP65 protection, 10-30V supply, M18, Stainless Steel housing, and an operating temperature of -10°C to 55°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications6 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 2
Sensing MethodNot specified
Sensing Range50.0 – 500.0 mmVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: range min from labeled distance with explicit unit
Excerpt: “50 to 500 mm”
Extracted Sep 6, 2026View source
Output TypeAnalog Current and Voltage
Supply Voltage10-30VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “10 to 30 VDC”
Extracted Sep 6, 2026View source
IP RatingIP65Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled compliance context
Excerpt: “IP65”
Extracted Sep 6, 2026View source
Housing MaterialStainless Steel
Housing TypeM18
Operating Temperature-10°C to 55°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-10 to 55°C”
Extracted Sep 6, 2026View source
Switching FrequencyNot specified
Response Time63 msVerified · High · Page 2
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$2245.01Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E4B-LS20E4 2M | Omron Automation and Safety | SENSOR PROX ULTRASN 50-200MM BOX | 50.0 mm | $538.00 |
| E4B-LS20E4 5M | Omron Automation and Safety | SENSOR PROX ULTRASN 50-200MM BOX | 5000.0 mm | $566.09 |
| E4B-LS70E4 2M | Omron Automation and Safety | SENSOR PROX ULTRA 200-600MM BOX | 700.0 mm | $526.71 |
| E4C-LS35 | Omron Automation and Safety | SENSOR PROX ULTRA 100-350MM CYL | 100000.0 mm | $341.34 |
| E4C-TS50 | Omron Automation and Safety | SENSOR PROX ULTRASON 500MM CYL | 500.0 mm | $605.14 |
