Omron Automation and SafetyE3Z-FRN21

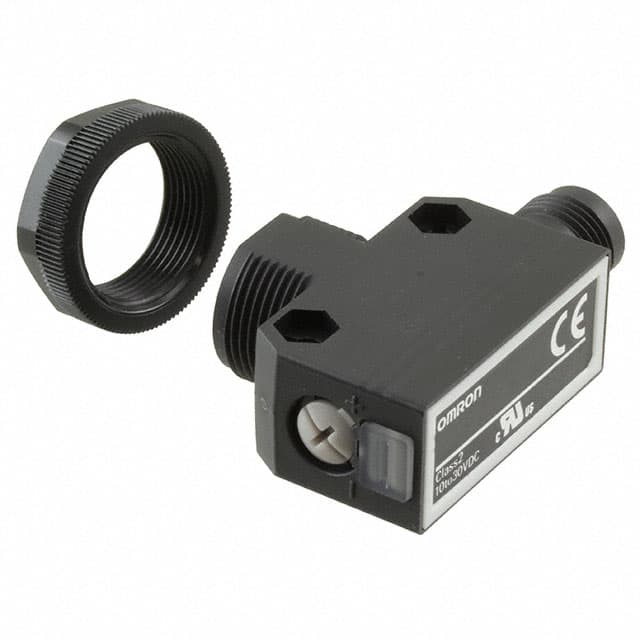

Omron Automation and Safety E3Z-FRN21 is a photoelectric sensor. Specifications include a sensing range of 2000 mm, NPN - Open Collector output, IP69K/IP67 protection, 10-30V supply, and an operating temperature of -25°C to 55°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications5 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectric
Sensing MethodRetroreflective
Sensing Distance2000.0 mm
Output TypeNPN - Open Collector
Supply Voltage10-30VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “10 to 30 VDC”
Extracted Sep 5, 2026View source
IP RatingIP69K, IP67Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled ingress-protection context
Excerpt: “IP69K, IP67”
Extracted Sep 5, 2026View source
Housing MaterialNot specified
Housing TypeNot specified
Operating Temperature-25°C to 55°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−25 to 55°C”
Extracted Sep 5, 2026View source
Switching FrequencyNot specified
Response Time0.5 msVerified · High · Page 2
Current Consumption40 mAVerified · High · Page 2
AccuracyNot specified
Where to Buy
Best Price
Mouser
$111.82Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Photoelectric sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E3Z-FTP11 2M | Omron Automation and Safety | — | 2000.0 mm | $159.46 |
| E3Z-FTP12 2M | Omron Automation and Safety | — | 2000.0 mm | $169.21 |
| E3Z-R86 | Omron Automation and Safety | SENSOR RETROREFLECTIVE 4M PNP | 100000.0 mm | $203.96 |
| E3ZM-V61 2M | Omron Automation and Safety | SENSOR RETROREFL 12MM NPN DO/LO | 2000.0 mm | $448.91 |
| E3S-AD12 | Omron Automation and Safety | SENSOR REFLECTVE 700MM NPN DO/LO | 700.0 mm | $343.31 |
