Proximity Sensors - Industrial
Omron Automation and SafetyE2KQ-X10ME1

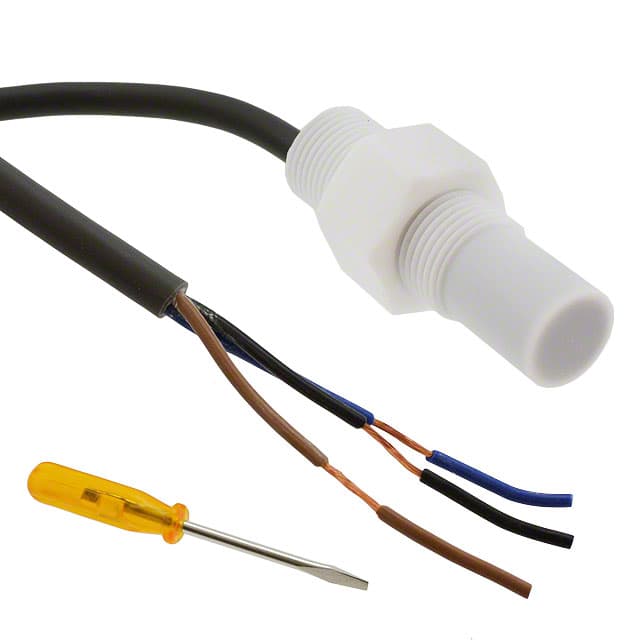

Omron Automation and Safety E2KQ-X10ME1 is a capacitive sensor. Specifications include a sensing range of 6–10 mm, NPN-NO, 3-Wire output, IP66 protection, 12-24V supply, M18, Plastic housing, and an operating temperature of -10°C to 55°C.
Engineering Specifications
10 of 13 fields available · 77%Verified from distributor listing4 of 10 verified specifications with source evidence
Sensor TypeCapacitive
Sensing MethodNot specified
Sensing Range6.0 – 10.0 mm
Output TypeNPN-NO, 3-Wire
Supply Voltage12-24VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 7, 2026View source
IP RatingIP66Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled compliance context
Excerpt: “IP66”
Extracted Sep 7, 2026View source
Housing MaterialPlastic
Housing TypeM18
Operating Temperature-10°C to 55°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−10 to 55°C”
Extracted Sep 7, 2026View source
Switching Frequency35 Hz
Response TimeNot specified
Current Consumption15 mAVerified · High · Page 2
AccuracyNot specified
Where to Buy
Best Price
Mouser
$458.771 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Capacitive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E2K-F10MC1 | Omron Automation and Safety | SENSOR PROX CAP 10MM IP66 BOX | 10.0 mm | $173.46 |
| E2K-C25ME1 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | — | $292.66 |
| E2K-C25ME2 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | 30.0 mm | $293.19 |
| E2K-C25MF1 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | 30.0 mm | $292.66 |
| E2K-F10MC1-A 2M | Omron Automation and Safety | SENSOR PROX CAPACIT 4-10MM BOX | 10.0 mm | $226.10 |
