Omron Automation and SafetyE2K-X4ME1

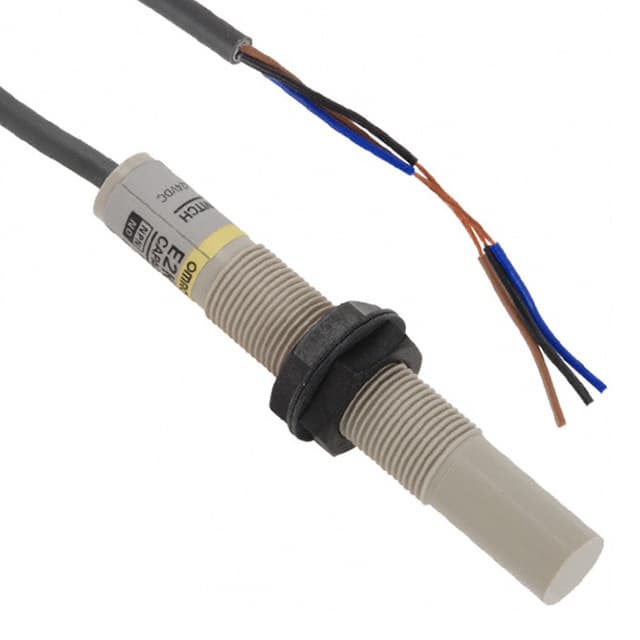

Omron Automation and Safety E2K-X4ME1 is a capacitive sensor. Specifications include a sensing range of 4 mm, DC 3-wire, NPN output, IP66 protection, 12-24V supply, M12, Plastic housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications5 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeCapacitive
Sensing MethodNot specified
Sensing Distance4.0 mm
Output TypeDC 3-wire, NPNVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: cross-table ordering-matrix row for exact target identity
Excerpt: “DC 3-wire, NPN”
Extracted Sep 6, 2026View source
Supply Voltage12-24VVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 6, 2026View source
IP RatingIP66Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled compliance context
Excerpt: “IP66”
Extracted Sep 6, 2026View source
Housing MaterialPlastic
Housing TypeM12
Operating Temperature-25°C to 70°CVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−25 to 70°C”
Extracted Sep 6, 2026View source
Switching Frequency100 Hz
Response TimeNot specified
Current Consumption15 mAVerified · High · Page 4
AccuracyNot specified
Where to Buy
Best Price
Mouser
$213.511 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Capacitive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E2K-C25ME1 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | — | $292.66 |
| E2K-C25ME2 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | 30.0 mm | $293.19 |
| E2K-C25MF1 | Omron Automation and Safety | SENSOR PROX CAP 3MM-25MM CYLIND | 30.0 mm | $292.66 |
| E2K-F10MC1-A 2M | Omron Automation and Safety | SENSOR PROX CAPACIT 4-10MM BOX | 10.0 mm | $226.10 |
| E2K-X4MF1 | Omron Automation and Safety | SENSOR PROX CAP 4MM IP66 CYLIND | 4.0 mm | $201.43 |
