Proximity Sensors - Industrial
Carlo GavazziEC5525PPAP-1

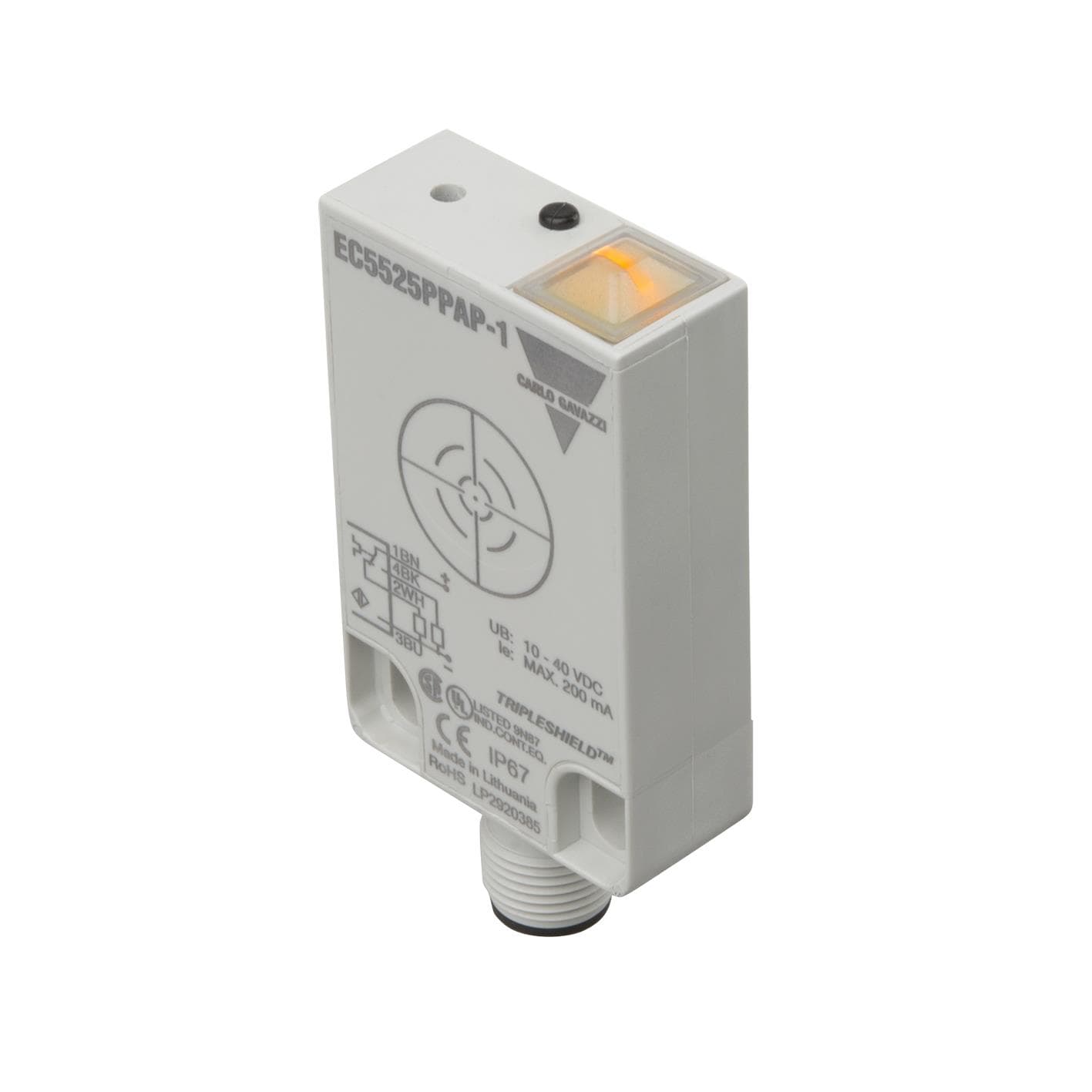

Carlo Gavazzi EC5525PPAP-1 is a capacitive sensor. Specifications include a sensing range of 25 mm, PNP-NC/NO, 4-Wire output, IP67 protection, 10V ~ 40V supply, Module, Polycarbonate (PC), grey housing, and an operating temperature of -25°C to 80°C.
Engineering Specifications
10 of 13 fields available · 77%Verified from distributor listing4 of 10 verified specifications with source evidence
Sensor TypeCapacitive
Sensing MethodNot specified
Sensing Distance25.0 mm
Output TypePNP-NC/NO, 4-Wire
Supply Voltage10V ~ 40V
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialPolycarbonate (PC), greyVerified · High · Page 1
Housing TypeModule
Operating Temperature-25°C to 80°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25 to +80°C”
Extracted Sep 7, 2026View source
Switching Frequency50 Hz
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$335.001 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Capacitive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| CA30CAN25PA | Carlo Gavazzi Inc. | SENSOR PROX CAPACITIVE 25MM CYL | 25.0 mm | $115.90 |
| CA30CLN25CP | Carlo Gavazzi | SENSOR PROX CAPACITIVE 25MM CYL | 25.0 mm | $317.30 |
| CA30EAN25BPM1IO | Carlo Gavazzi | CAPACITIVE PROXIMITY SENSOR, NON | 25.0 mm | $145.35 |
| CA30FAN25BPA2IO | Carlo Gavazzi | CAPACITIVE PROXIMITY SENSOR, NON | 25.0 mm | $203.06 |
| EC3016TBAPL-6 | Carlo Gavazzi | SENSOR PROX CAPACITIVE 16MM CYL | 25.0 mm | $423.70 |
