Industrial Automation and Controls

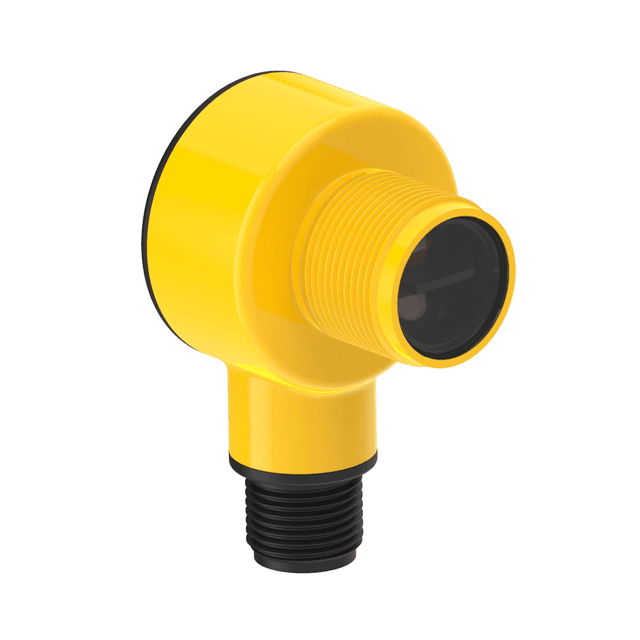

Banner EngineeringT18-2VPDL-Q8
Banner Engineering T18-2VPDL-Q8 is a photoelectric sensor. Specifications include a sensing range of 750 mm, Complementary PNP or NPN by model number output, IP67/IP68/IP69K protection, 10-30V supply, and an operating temperature of -40°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications5 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectric
Sensing MethodDiffuse
Sensing Distance750.0 mm
Output TypeComplementary PNP or NPN by model numberVerified · High · Page 4
Manufacturer datasheetHighPage 4
Excerpt: “Complementary PNP or NPN by model number”
Extracted Sep 8, 2026View source
Supply Voltage10-30VVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: labeled voltage with V unit
Excerpt: “10 V DC to 30 V DC”
Extracted Sep 8, 2026View source
IP RatingIP67, IP68, IP69KVerified · Medium · Page 4
Manufacturer datasheetMediumPage 4
Evidence: product-scoped context tokens
Excerpt: “IP67, IP68, IP69K”
Extracted Sep 8, 2026View source
Housing MaterialNot specified
Housing TypeNot specified
Operating Temperature-40°C to 70°CVerified · High · Page 4
Manufacturer datasheetHighPage 4
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “–40 °C to +70 °C”
Extracted Sep 8, 2026View source
Switching FrequencyNot specified
Response Time1.5 ms
Current Consumption16 mAVerified · High · Page 4
AccuracyNot specified
